A base class for implementing Impact Triggers. It is not necessary to inherit from this class when making your own trigger, but it contains methods and properties you might find useful.

Template Parameters

TCollision	The IImpactCollisionWrapper implementation being used.
TContact	The IImpactContactPoint implementation being used.

More...

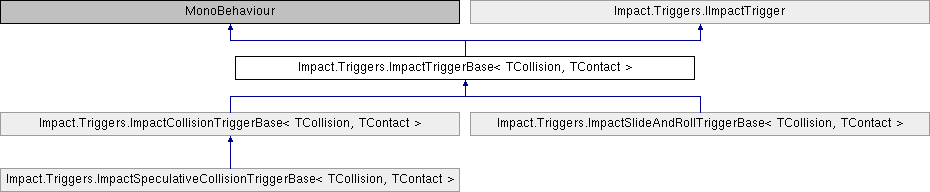

Inheritance diagram for Impact.Triggers.ImpactTriggerBase< TCollision, TContact >:

Protected Member Functions
IImpactObject	getImpactObject (GameObject collider)
	Attempts to retrieve an IImpactObject to send interaction data to. If MainTarget is set, MainTarget will be returned. Otherwise it will attempt to get the IImpactObject component from the given game object or one of its parents. More...

void	processCollision (TCollision collision)
	Takes the given IImpactCollisionWrapper and processes it based on the trigger settings. Override buildAndSendCollisionParameters to receive the built data and convert it to IInteractionData to send to an IImpactObject. More...

void	processCollisionSingleContact (TCollision collision)
	Takes the given IImpactCollisionWrapper and processes it for a single contact only (the first contact). Override buildAndSendCollisionParameters to receive the data and convert it to IInteractionData to send to an IImpactObject. More...

void	processCollisionSingleAveragedContact (TCollision collision)
	Takes the given IImpactCollisionWrapper and processes it for a single averaged contact. Override buildAndSendCollisionParameters to receive the data and convert it to IInteractionData to send to an IImpactObject. More...

void	processCollisionMultipleContacts (TCollision collision)
	Takes the given IImpactCollisionWrapper and processes all of it's contact points. Override buildAndSendCollisionParameters to receive the data and convert it to IInteractionData to send to an IImpactObject. More...

void	processCollisionContact (TCollision collision, TContact contactPoint)
	Process a collision contact to get all material and velocity data. The material and velocity data will be sent to buildInteractionData, which you can override. More...

ImpactTagMask?	getOtherObjectTagMask (IImpactObject impactObject, Vector3 point, int otherPhysicsMaterialID, bool hasOtherObject)

virtual void	buildInteractionData (IImpactObject target, TCollision collision, TContact contactPoint, VelocityData myVelocityData, VelocityData otherVelocityData, ImpactTagMask? tagMask, float compositionValue)
	Called by the process methods to build IInteractionData. Override this if your custom triggers are using any of the process methods. More...

void	invokeTriggeredEvent (InteractionData interactionData, IImpactObject impactObject)

Properties
bool	Enabled `[get, set]`
	Should this trigger process any collisions? You should use this instead of the normal enabled property because collision messages are still sent to disabled components. More...

ImpactObjectBase	MainTarget `[get, set]`
	The ImpactObjectBase this trigger will use for interaction calculations. More...

bool	UseMaterialComposition `[get, set]`
	Should this trigger use the material composition of the objects it hits? If true, interaction data will be sent for each material at the interaction point. If false, interaction data will only be sent for the primary material at the interaction point. More...

ImpactTriggerContactMode	ContactMode `[get, set]`
	How collision contacts should be handled. More...

bool	HighPriority `[get, set]`
	Should this trigger ignore the Physics Interactions Limit set in the Impact Manager? More...

Properties inherited from Impact.Triggers.IImpactTrigger
bool	Enabled `[get, set]`
	Should this trigger process any collisions? You should use this instead of the normal enabled property because collision messages are still sent to disabled components. More...

ImpactObjectBase	MainTarget `[get, set]`
	The ImpactObjectBase this trigger will use for interaction calculations. More...

bool	UseMaterialComposition `[get, set]`
	Should this trigger use the material composition of the objects it hits? If true, interaction data will be sent for each material at the interaction point. If false, interaction data will only be sent for the primary material at the interaction point. More...

ImpactTriggerContactMode	ContactMode `[get, set]`
	How collision contacts should be handled. More...

bool	HighPriority `[get, set]`
	Should this trigger ignore the Physics Interactions Limit set in the Impact Manager? More...

Events
Action< InteractionData, IImpactObject >	OnTriggered
	Invoked when triggered. Sends the Interaction Data and the Impact Object that was triggered.

Detailed Description

A base class for implementing Impact Triggers. It is not necessary to inherit from this class when making your own trigger, but it contains methods and properties you might find useful.

Template Parameters

TCollision	The IImpactCollisionWrapper implementation being used.
TContact	The IImpactContactPoint implementation being used.

Type Constraints

TCollision	:	IImpactCollisionWrapper<TContact>
TContact	:	IImpactContactPoint

Member Function Documentation

◆ buildInteractionData()

virtual void Impact.Triggers.ImpactTriggerBase< TCollision, TContact >.buildInteractionData	(	IImpactObject	target,
		TCollision	collision,
		TContact	contactPoint,
		VelocityData	myVelocityData,
		VelocityData	otherVelocityData,
		ImpactTagMask?	tagMask,
		float	compositionValue
	)

protectedvirtual

Called by the process methods to build IInteractionData. Override this if your custom triggers are using any of the process methods.

Parameters

target	The target IImpactObject to send data to. You do not necessarily have to send data to this object.
collision	The collision being processed.
contactPoint	The collision contact point.
myVelocityData	The velocity data of this object.
otherVelocityData	The velocity data of the object being collided with.
tagMask	The tag mask obtained from the other object. Can be null.
compositionValue	The material composition value.

Reimplemented in Impact.Triggers.ImpactCollisionTriggerBase< TCollision, TContact >, and Impact.Triggers.ImpactSlideAndRollTriggerBase< TCollision, TContact >.

◆ getImpactObject()

IImpactObject Impact.Triggers.ImpactTriggerBase< TCollision, TContact >.getImpactObject ( GameObject collider )

protected

Attempts to retrieve an IImpactObject to send interaction data to. If MainTarget is set, MainTarget will be returned. Otherwise it will attempt to get the IImpactObject component from the given game object or one of its parents.

Parameters

collider The game object to use if MainTarget is null.

Returns: The IImpactObject to send interaction data to, if one can be found.

◆ processCollision()

void Impact.Triggers.ImpactTriggerBase< TCollision, TContact >.processCollision ( TCollision collision )

protected

Takes the given IImpactCollisionWrapper and processes it based on the trigger settings. Override buildAndSendCollisionParameters to receive the built data and convert it to IInteractionData to send to an IImpactObject.

Parameters

collision The collision to process.

◆ processCollisionContact()

void Impact.Triggers.ImpactTriggerBase< TCollision, TContact >.processCollisionContact	(	TCollision	collision,
		TContact	contactPoint
	)

protected

Process a collision contact to get all material and velocity data. The material and velocity data will be sent to buildInteractionData, which you can override.

Parameters

collision	The original collision data.
contactPoint	The contact point of the collision to use in calculations.

◆ processCollisionMultipleContacts()

void Impact.Triggers.ImpactTriggerBase< TCollision, TContact >.processCollisionMultipleContacts ( TCollision collision )

protected

Takes the given IImpactCollisionWrapper and processes all of it's contact points. Override buildAndSendCollisionParameters to receive the data and convert it to IInteractionData to send to an IImpactObject.

Parameters

collision The collision to process.

◆ processCollisionSingleAveragedContact()

void Impact.Triggers.ImpactTriggerBase< TCollision, TContact >.processCollisionSingleAveragedContact ( TCollision collision )

protected

Takes the given IImpactCollisionWrapper and processes it for a single averaged contact. Override buildAndSendCollisionParameters to receive the data and convert it to IInteractionData to send to an IImpactObject.

Parameters

collision The collision to process.

◆ processCollisionSingleContact()

void Impact.Triggers.ImpactTriggerBase< TCollision, TContact >.processCollisionSingleContact ( TCollision collision )

protected

Takes the given IImpactCollisionWrapper and processes it for a single contact only (the first contact). Override buildAndSendCollisionParameters to receive the data and convert it to IInteractionData to send to an IImpactObject.

Parameters

collision The collision to process.

Property Documentation

◆ ContactMode

ImpactTriggerContactMode Impact.Triggers.ImpactTriggerBase< TCollision, TContact >.ContactMode

getset

How collision contacts should be handled.

Implements Impact.Triggers.IImpactTrigger.

◆ Enabled

bool Impact.Triggers.ImpactTriggerBase< TCollision, TContact >.Enabled

getset

Should this trigger process any collisions? You should use this instead of the normal enabled property because collision messages are still sent to disabled components.

Implements Impact.Triggers.IImpactTrigger.

◆ HighPriority

bool Impact.Triggers.ImpactTriggerBase< TCollision, TContact >.HighPriority

getset

Should this trigger ignore the Physics Interactions Limit set in the Impact Manager?

Implements Impact.Triggers.IImpactTrigger.

◆ MainTarget

ImpactObjectBase Impact.Triggers.ImpactTriggerBase< TCollision, TContact >.MainTarget

getset

The ImpactObjectBase this trigger will use for interaction calculations.

Implements Impact.Triggers.IImpactTrigger.

◆ UseMaterialComposition

bool Impact.Triggers.ImpactTriggerBase< TCollision, TContact >.UseMaterialComposition

getset

Should this trigger use the material composition of the objects it hits? If true, interaction data will be sent for each material at the interaction point. If false, interaction data will only be sent for the primary material at the interaction point.

Implements Impact.Triggers.IImpactTrigger.
